BELLOWS
Connector Kit
Custom Lengths Available
Details
Kit includes bellows, male and female connectors, and two V-band clamps.

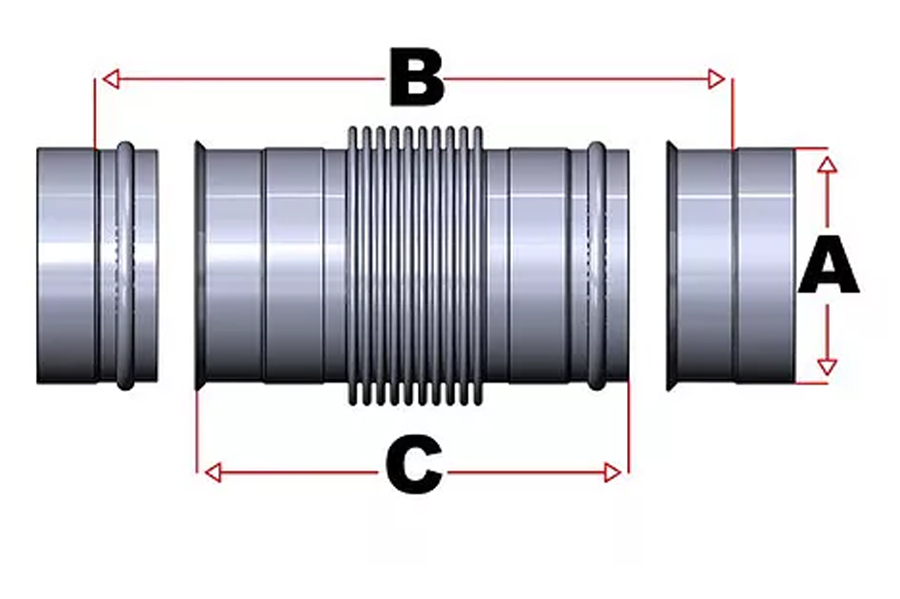

| PART # | A ID |
B LENGTH |
C BELLOWS LENGTH |
D LIVE LENGTH |
|---|---|---|---|---|
| 2015083-3S | 3” | 11.25″ | 7.25″ | 3″ |
| 2015083-3L | 3” | 16.25″ | 13.25″ | 9″ |
| 2015083-35S | 3.5” | 11.25″ | 7.25″ | 3″ |
| 2015083-35L | 3.5” | 16.25″ | 13.25″ | 9″ |
| 2015083-4S | 4” | 11.25″ | 7.25″ | 3″ |
| 2015083-4L | 4” | 16.25″ | 13.25″ | 9″ |
| 2015083-5S | 5” | 11.25″ | 7.25″ | 3″ |
| 2015083-5L | 5” | 16.25″ | 13.25″ | 9″ |
| 2015083-6S | 6” | 11.25″ | 7.25″ | 3″ |
| 2015083-6L | 6” | 16.25″ | 13.25″ | 9″ |
| 2015083-7S | 7” | 9.875″ | 6.875″ | 2.625″ |
| 2015083-7L | 7” | 13.25″ | 10.25″ | 6″ |
| 2015083-8S | 8” | 10.25″ | 7.25″ | 3″ |
| 2015083-8L | 8” | 13.25″ | 10.25″ | 6″ |
| 2015083-10S | 10” | 10.25″ | 7.25″ | 3″ |
| 2015083-10L | 10” | 13.25″ | 10.25″ | 6″ |
| 2015083-12L | 12” | 13.25″ | 10.25″ | 6″ |
